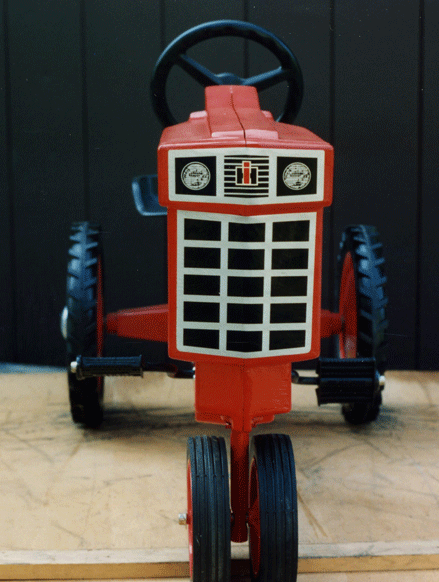

IH “1086”
Manufactured by Ertl.
Uses same casting as the“1066.”
Everything the same as “1066” except for side decals, which have a black stripe all the way across ,
the rear rims, the hubs and the pedals.
DECALS: Left and Right side, back of the Seat, Steering Wheel, and on the Front
FRONT TIRE: 7x1 1/2” rib tread, flat face, plain
REAR TIRE: 12x1 3/4” lug tread, plain
FRONT RIM: Plastic with hat shaped pushnuts
REAR RIM: Smooth High Dome with low dome hubcap
HUBS: Round with large plastic bearings
CHAIN: Regular with a chain guard
PEDALS: Black ribbed plastic with hat shaped pushnuts
STEERING WHEEL and SEAT: Black plastic
HITCH: Round head, rivet type hitch pin
REAR RIM: Current High Ride with low dome hubcaps
HUB: Current small hub with small plastic bearings
Pedal crank should be painted black
PEDAL: Current Ertl embossed with hat shaped pushnuts
Check out the video with more information closeups.
